Adventures in Type Theory 1 — Locally Nameless STLC (Part 1)

Published: 2025-08-24 (Edited: 2025-08-26)

Part of the Adventures in Type Theory series

It’s been a while.

As I wrap up my PhD, I decided to take on a few side adventures while writing the thesis. I’ve also built up a backlog of things I’ve wanted to write, and while the best time to start was yesterday, the second-best is now.

We’re beginning with a motorcycle ride from Cambridge to Termini Imerese in Sicily, covering about 2700 kilometers. It’s going to be fun.

Along the way, we’ll try to cover how to formalize locally nameless things in Lean in detail, which hopefully we’ll eventually condense into an ArXiv article or two without the associated travelogue. We’re starting from the basics with the simply typed lambda calculus, inspired by Arthur Charguéraud’s excellent locally nameless tutorial.

Without further ado, let’s get started.

Project Setup

Location: Costa Coffee at Dover Port (51.12508, 1.33273)

Time: 2025-08-23T12:30+1

My laptop is open, but there’s no charging port in sight. I sip the traditional hazelnut latte.

Long ago, in Beirut, I was drinking the same thing, at the ABC mall, learning about rings from Dummit and Foote. Soon after, I was looking out a rain-streaked window towards the Order of Engineers in Tripoli, trying to implement ProTem, which is how I got into this mess.

I do not particularly like ikan bilis

The Wi-Fi at the port’s Costa is surprisingly good, so we can just go ahead and start with

# Create a new Lean 4 project, ln-stlc, with a mathlib dependency
lake +leanprover-community/mathlib4:lean-toolchain new ln-stlc math
# Open the folder created for the project
cd ln-stlc
# Check everything was set up correctly
lake build

If we look at the generated files in ln-stlc, we’ll see that the source code for our Lean development is stored in a folder LnStlc, and specifically, in LnStlc/Basic.lean. Let’s go ahead and rename that to Syntax.lean

mv LnStlc/Basic.lean LnStlc/Syntax.lean

and edit LnStlc.lean accordingly

import LnStlc.Syntax

Syntax

Definitions

The ferry is leaving at 14:00; we’ve got about 15 minutes until we need to rush back over. Let’s see if we can code up some syntax. Opening up LnStlc/Syntax.lean, we’ll start with our types:

/-- Simple types -/
inductive Ty : Type
/-- The unit type. -/
| unit
/-- A function type `A → B`. -/
| arr (A B : Ty)
/-- A product type `A × B`. -/
| prod (A B : Ty)

Let’s throw in an import for $ℕ$ syntax

import Mathlib.Data.Nat.Lattice

and we can go ahead and define the corresponding syntax as follows:

/-- Untyped STLC terms -/
inductive Tm : Type
/-- A named free variable. -/
| fv (x : String)
/-- A bound variable, represented using a de Bruijn index. -/
| bv (i : ℕ)
/-- The unique value of the unit type. -/
| null
/-- A lambda abstraction `λ (x : A). body`. -/
| abs (ty : Ty) (body : Tm)
/-- A pair `(a, b)`. -/
| pair (lhs rhs : Tm)
/-- The first projection of a pair. -/
| fst (p : Tm)
/-- The second projection of a pair. -/
| snd (p : Tm)

5 minutes left. As a sanity check, let’s define the binding depth of a term and bounce¹.

/-- The _binding depth_ of an STLC term `t`

    This is defined to be the minimal `k` such that `t` is closed at level `k`.

    We say `t` is closed at level `k` if and only if all unbound de Bruijn indices in `t` are `< n`.
    In particular, the following are equivalent:
    - `t` is locally closed
    - `t` is closed at level 0,  i.e. it does not contain any unbound de Bruijn indices.
    - `t` has binding depth 0 -/
def Tm.bvi : Tm → ℕ
| .fv _ => 0
| .bv i => i + 1
| .null => 0
| .abs _ body => bvi body - 1
| .pair lhs rhs => bvi lhs ⊔ bvi rhs
| .fst p => bvi p
| .snd p => bvi p

Let’s get to the ferry…

Luckily, we arrived with time to spare, so I’ve got 20 minutes to keep hacking.

We can now define the set of free variables which appears in our term in the obvious manner. We begin by importing the type of finite sets, Finset, from mathlib, along with some lemmas:

import Mathlib.Data.Finset.Lattice.Basic

and then it’s just a matter of writing down the obvious inductive definition

/-- The set of free variables appearing in an STLC term -/
def Tm.fvs : Tm → Finset String
| .fv x => {x}
| .bv _ => ∅
| .null => ∅
| .abs _ body => fvs body
| .pair lhs rhs => fvs lhs ∪ fvs rhs
| .fst p | .snd p => fvs p

This corresponds exactly to the function $\mathsf{fv}$ from page 9 of the tutorial.

Weakening and Substitution

To formalize the rules for our type theory, we’ll need to define substitution, since our rule for typing lambda abstractions will require an assumption of the form $b^x : B$. However, to define substitution, we need to define weakening. There’s two ways to go about (both) these things:

• Define weakening/substitution of a single variable, under n binders
• Define weakening/substitution using a map $ρ : ℕ → ℕ$/$σ : ℕ → \mathsf{Tm}$, and then specialize I usually do the latter, since I like generality a little too much, but since my ferry is departing in precisely 9 minutes, let’s do the former first. We can always prove it equivalent to the latter, which is a good sanity check.

So, we begin by defining wkUnder, which says “weaken by inserting a bound variable under $n$ binders” as follows:

/-- Weaken under `n` binders -/
def Tm.wkUnder (n : ℕ) : Tm → Tm
| .fv x => .fv x
| .bv i => if i < n then .bv i else .bv (i + 1)
| .null => .null
| .abs ty body => .abs ty (wkUnder (n + 1) body)
| .pair lhs rhs => .pair (wkUnder n lhs) (wkUnder n rhs)
| .fst p => .fst (wkUnder n p)
| .snd p => .snd (wkUnder n p)

Man, time constraints are an excellent tool for avoiding premature optimization. And meta-tangents, hopefully.

So, this is a pretty simple function. We note that:

• When we weaken a bound variable,
  • If we’re under n, we leave it alone
  • Otherwise, we increment it
• Every time we go under a binder, we increment the number of binders we’re under by 1. Here, the only case where this happens is .abs We’ll introduce some syntax sugar $↑_0 t$ for weakening $t$ under no binders:

prefix:70 "↑₀" => Tm.wkUnder 0

And we can now, with just 2 minutes to spare, define substitution under $n$ binders as follows:

def Tm.substUnder (n : ℕ) (a : Tm) : Tm → Tm
| .fv x => .fv x
| .bv i => if i < n then .bv i else if i = n then a else .bv (i - 1)
| .null => .null
| .abs ty body => .abs ty (substUnder (n + 1) (↑₀ a) body)
| .pair lhs rhs => .pair (substUnder n a lhs) (substUnder n a rhs)
| .fst p => .fst (substUnder n a p)
| .snd p => .snd (substUnder n a p)

Mmm, n a p. I do not like waking up early.

But I digress! So again, similarly to weakening:

• When we substitute a bound variable
  • If we’re under n, we leave it alone
  • If we’re at n, we replace it with a
  • Otherwise, we decrement it
• Every time we go under a binder, we increment the number of binders we’re under by 1. We also weaken the value we’re substituting, to avoid capturing variables from the binder!

And there we go! We’ve now got everything we need to give our typing rules. It’s 14:03 and the ferry still hasn’t arrived, though they said it will be on time, so let’s see how far we can get until then. The power of locally nameless is truly immense!

Typing Rules

Location: somewhere in the Strait of Dover, on the way to Dunkirk

Time: 2025-08-23T15:30+1

Just as I got to defining contexts, someone came to collect my ticket, and it was time to ride off. I boarded the ferry and strapped down the Gladius:

So. Contexts.

Which are just going to be lists of variables mapped to types.

Let’s open a new file, LnStlc/Deriv.lean. We’ll add it as an import in LnStlc.lean:

import LnStlc.Deriv

Now, back to Deriv.lean. We are faced with an empty file. What to write? Well, let’s start with importing our syntax file, as follows:

import LnStlc.Syntax

And now… contexts…

It’s an interesting question whether we want to allow duplicating variable names in our contexts or not; if we do, we obviously want the latest typing of a variable to hold. Usually, I forbid this in the context well-formedness judgement², but this is a simple type system, so there won’t be a well-formedness judgement. Which means we need to do this in the type or not at all.

I don’t want to complicate my types, and I trust in the magic of cofinite quantification, so let’s just not:

inductive Ctx : Type
| nil
| cons (Γ : Ctx) (x : String) (A : Ty)

We can now define a judgement for a variable’s type as follows:

inductive Ctx.Var : Ctx → Ty → String → Type
| here {Γ : Ctx} {A : Ty} {x : String} : Ctx.Var (Ctx.cons Γ x A) A x
| there {Γ : Ctx} {A B : Ty} {x y : String}
  : x ≠ y → Ctx.Var Γ A x → Ctx.Var (Ctx.cons Γ y B) A x

We make this a type rather than a proposition since we might want to do induction on it later if we get to a categorical semantics. But this is essentially a proposition, since it is a subsingleton:

instance Ctx.Var.instSubsingleton {Γ A x} : Subsingleton (Var Γ A x) where
  allEq a b := by
    induction a with
    | here => cases b with | here => rfl | there => contradiction
    | there _ _ I => cases b with
      | here => contradiction
      | there => exact (congrArg _ (I _))

It’s also useful to know that every variable has at most one type:

theorem Ctx.Var.disjoint {Γ A B x} (hA : Var Γ A x) (hB : Var Γ B x) : A = B := by
  induction hA with
  | here => cases hB with | here => rfl | there => contradiction
  | there _ _ I => cases hB with
    | here => contradiction
    | there _ hB => exact I hB

Note the naming and the somewhat unintuitive parameter order Var Γ A x, where the type comes first. That’s because I’m thinking of this as the set of variables of type $A$ in $Γ$; it would in fact be a Lean Set if we replaced Type with Prop.

We can now get to our typing rules.

We start by, as usual, introducing a spot of notation, this time using the Pow typeclass to overload the ^ operator, back in Syntax.lean:

instance Tm.instPow : Pow Tm Tm where
  pow b a := substUnder 0 a b

and, while we’re at it, to avoid typing .fv everywhere,

instance Tm.instCoeVar : Coe String Tm where
  coe x := .fv x

instance Tm.instPowVar : Pow Tm String where
  pow b x := b^(Tm.fv x)

Back in Deriv.lean, our primary typing judgement will take the form

inductive Ctx.Deriv : Ctx → Ty → Tm → Type

Again, we put the type first as we’re thinking about “the set of terms of type $A$ in $Γ$”, and also because we’re thinking about “a morphism from $Γ$ to $A$“.

And we return a Type, rather than a Prop, in case we want to have fun with that aforementioned morphism idea; that’s also why we call it Deriv rather than HasTy.

I see land on the horizon. But we’ve got 45 minutes, I think. So let’s continue.

Our typing rules are exceedingly standard:

• Variables are typed using the obvious rule
  $$\frac{Γ(x) = A}{Γ ⊢ x : A}$$
• The unit value $*$ always has type $\mathbf{1}$, regardless of context
• We type abstractions by using cofinite quantification; that is, our rule is
  $$\frac{∀ x ∉ L . Γ, x : A ⊢ b^x : B}{Γ ⊢ λ A . b : A → B} \qquad \text{where} \qquad L \in \mathcal{P}_{\mathsf{fin}}(\mathsf{String}) \quad \text{is an arbitrary finite set}$$
  Note in particular that:
  • $b$ is not necessarily locally closed, since we bind the $λ$ using a de Bruijn index
  • But, we’ll show by induction that $b^x$ is always locally closed
  • However, the choice of $x$ “doesn’t matter” due to quantification
  • But to deal with shadowing, we allow a finite set of exceptions where this can break
  • In real life, this is $\mathsf{vars}(Γ)$, but this has a bad induction property
  • We can equivalently ask the premise for just one arbitrary $x ∉ \mathsf{vars}(Γ)$, but this also has a bad induction property
  • So we use cofinite quantification, and it will turn out equivalent to what we want!
• Pairs and projections are typed in the obvious manner:
  $$\frac{Γ ⊢ a : A \qquad Γ ⊢ b : B}{Γ ⊢ (a, b) : A × B} \qquad \frac{Γ ⊢ p : A × B}{Γ ⊢ \mathsf{fst}(p) : A} \qquad \frac{Γ ⊢ p : A × B}{Γ ⊢ \mathsf{snd}(p) : B}$$

Translated to Lean, that all becomes

inductive Ctx.Deriv : Ctx → Ty → Tm → Type
  | var {Γ A x} : Var Γ A x → Deriv Γ A x
  | null {Γ} : Deriv Γ .unit .null
  | abs {Γ A B b} {L : Finset String}
    : (∀x ∉ L, Deriv (cons Γ x A) B (b^x))
    → Deriv Γ (.arr A B) (.abs A b)
  | pair {Γ A B a b}
    : Deriv Γ A a
    → Deriv Γ B b
    → Deriv Γ (.prod A B) (.pair a b)
  | fst {Γ A B p}
    : Deriv Γ (.prod A B) p
    → Deriv Γ A (.fst p)
  | snd {Γ A B p}
    : Deriv Γ (.prod A B) p
    → Deriv Γ B (.snd p)

You know, I am so glad that, now that I’m back on the boat, I have AI back. I’ve gotten into the unfortunate habit of waiting a split second for a tab-completion, like I’m trying to penetrate a Holtzman shield or something. On second thought, perhaps that’s not ideal.

We add a dash of notation:

notation Γ " ⊢ " a " : " A => Ctx.Deriv Γ A a

Well-Typed Terms are Locally Closed

Location: L’Emanuella, Isbergues (50.61313, 2.45165)

Time: 2025-08-23T20:45+2

As I began to prove some properties of well-typed terms, my laptop ran out of battery, and I realized that I had forgotten my European-to-UK adapters, and all the plugs on the ferry were EU. I also realized all three of my phones were running out of battery, most worryingly, including the navigation phone. This would be fun. And no adapters on board. Obviously. I’m surprised they didn’t try to sell me one, seems like it would be a win-win.

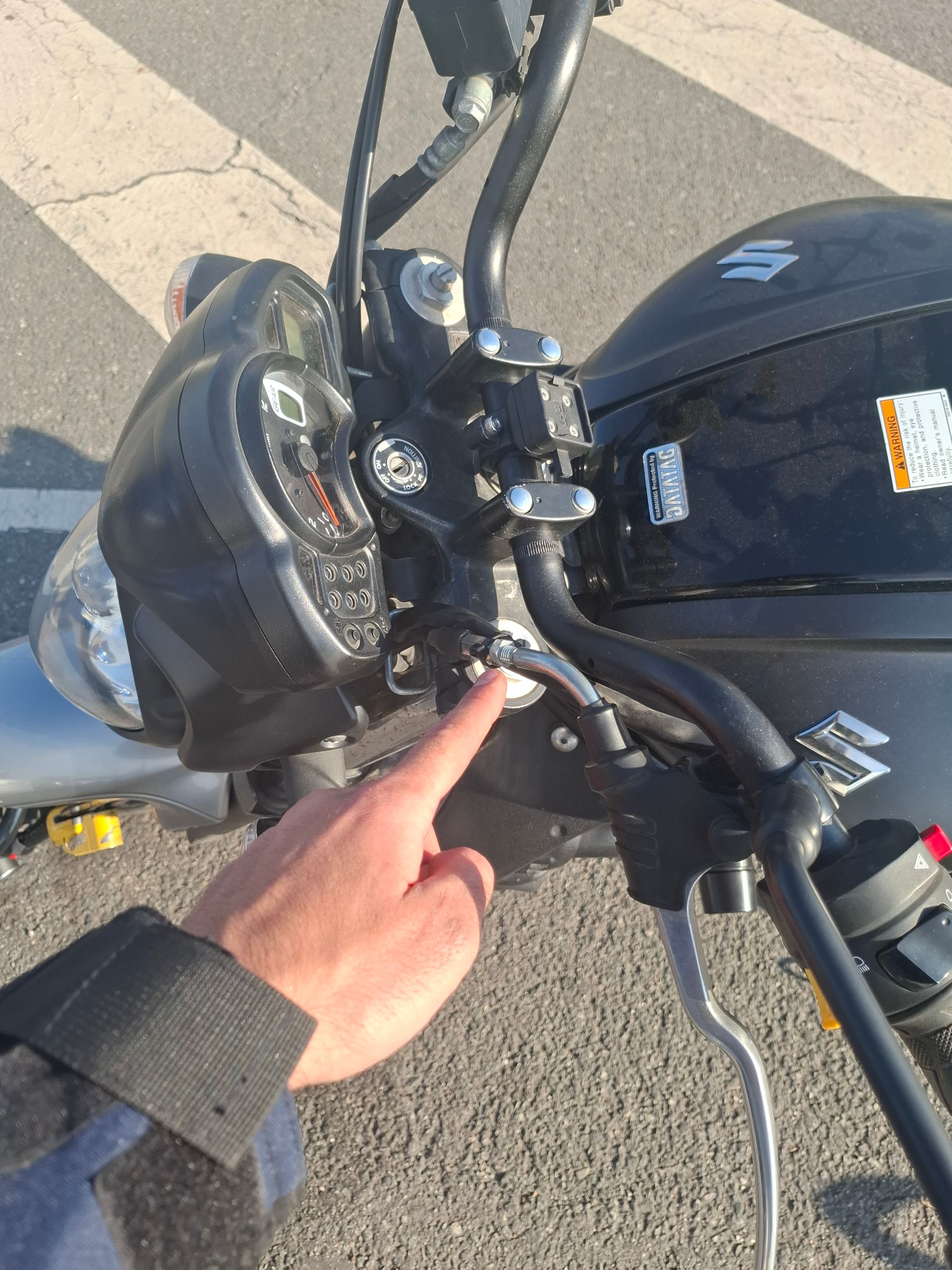

I ride off the ferry and, after filling up, notice that my clutch is slipping again—despite having just replaced it. The lever had no free play — the cable was taut. Easy fix: I stopped at a supermarket and tightened it with the inline adjuster near the frame, since the lever adjuster was already maxed out. Thankfully, no need to touch the engine-side adjuster hidden behind a plate. Picture attached.

Anyway, I finally arrive at the hotel, and after putting my stuff away, am treated to a nice tea by the wonderful host, with whom I practice my French. Definitely getting an excellent review⁴.

So. Type theory.

Our first sanity-check is verifying that well-typed terms are always locally closed; that is, we want

theorem Ctx.Deriv.lc {Γ a A} (ha : Γ ⊢ a : A) : a.bvi = 0

To prove this, we’ll need some lemmas to relate $\mathsf{bvi}(a^x)$ and $\mathsf{bvi}(a)$. Let’s keep it simple: it’s obvious that

We’ll write this as bvi b - 1 = 0, using saturating subtraction on $ℕ$, to play nicely with grind.

We want to prove this by induction, so we want to figure out the corresponding fact about substUnder (with a variable argument $x$). The obvious thing to do is to try comparing bvi b and bvi (substUnder n x b) directly, but that doesn’t quite work, since

• For the substituted variable $i = n$, bvi b = n + 1, which is not $≤$ bvi (substUnder n x b) + 1 = bvi x + 1 = 1
• For variables $i < n$, bvi (substUnder n x b) = bvi b, which is not $≤$ bvi b - 1 for bvi b ≠ 0 So, back in Syntax.lean, we instead do

theorem Tm.bvi_le_substUnder_var (n : ℕ) (x : String) (b : Tm)
  : bvi b ≤ (n + 1) ⊔ (bvi (substUnder n x b) + 1)
  := by induction b generalizing n <;> grind [bvi, substUnder, wkUnder]

theorem Tm.bvi_substUnder_var_le (n : ℕ) (x : String) (b : Tm)
  : bvi (substUnder n x b) ≤ n ⊔ (bvi b - 1)
  := by induction b generalizing n <;> grind [bvi, substUnder, wkUnder]

Man, I love grind.

This specializes to $b^x$ in the obvious manner:

theorem Tm.pow_def (b : Tm) (a : Tm) : b ^ a = substUnder 0 a b := rfl

theorem Tm.pow_var_def (x : String) (b : Tm) : b ^ x = substUnder 0 x b := rfl

theorem Tm.bvi_le_subst_var (x : String) (b : Tm)
  : bvi b ≤ bvi (b ^ x) + 1
  := by convert bvi_le_substUnder_var 0 x b using 1; simp [Tm.pow_var_def]

theorem Tm.bvi_subst_var_le (x : String) (b : Tm) : bvi (b ^ x) ≤ bvi b - 1
  := by convert b.bvi_substUnder_var_le 0 x using 1; simp

giving us the desired result immediately

theorem Tm.subst_var_lc {x : String} {b : Tm} : bvi (b ^ x) = 0 ↔ bvi b - 1 = 0
  := by have h := b.bvi_le_subst_var x; have h' := b.bvi_subst_var_le x; omega

To be able to prove our desired result conveniently, we want to rephrase this to talk about the cofinite quantification $∀x ∉ L . \mathsf{bvi}(b^x) = 0$, corresponding to the inductive hypothesis for the abs case. We import some utilities:

import Mathlib.Data.Set.Finite.Basic

and prove

theorem Tm.subst_var_lc_cf {L : Finset String} {b : Tm} : (∀x ∉ L, bvi (b ^ x) = 0) ↔ bvi b - 1 = 0
  := by
  simp only [subst_var_lc]
  exact ⟨fun h => have ⟨x, hx⟩ := L.exists_notMem; h x hx, fun h _ _ => h⟩

Back in Deriv.lean, the actual theorem is then as simple as

theorem Ctx.Deriv.lc {Γ a A} (ha : Γ ⊢ a : A) : a.bvi = 0
  := by induction ha with
  | _ =>
    (try simp only [Tm.subst_var_lc_cf] at *)
    grind [Tm.bvi]

I really love grind.

It’s about 9:43 PM, and I need to fill in the photos and travel bits, give this article some AI ✨polish✨ and, finally, fall into hypersleep. So let’s call it a day

Conclusion

Location: L’Emanuella, Isbergues (50.61313, 2.45165)

Time: 2025-08-24T00:04+2

Next time, we’ll begin to tackle weakening and substitutions. This article’s code can be found on Github, at commit 6907519.

My plan for the Adventures in Type Theory series is:

• Write each article on the road; you can see the live commits to the text on my GitHub
• Polish and publish during downtime; this may be irregular, because riding, and also thesis. And also covalence. A lot of the writing may very well be about thesis/covalence, and related musings.

Now, it’s time to catch up on sleep, perhaps after a bit of polish, because we’ve got a lot of planning to do tomorrow! And we’ve got to find accommodation. Fight perfectionism! Just upload it.

Toodles.

Changelog

• 2025-08-26: polish text a little bit, refactor into two files Syntax.lean and Deriv.lean. We should probably improve the narrative to make the flow between these clearer.
